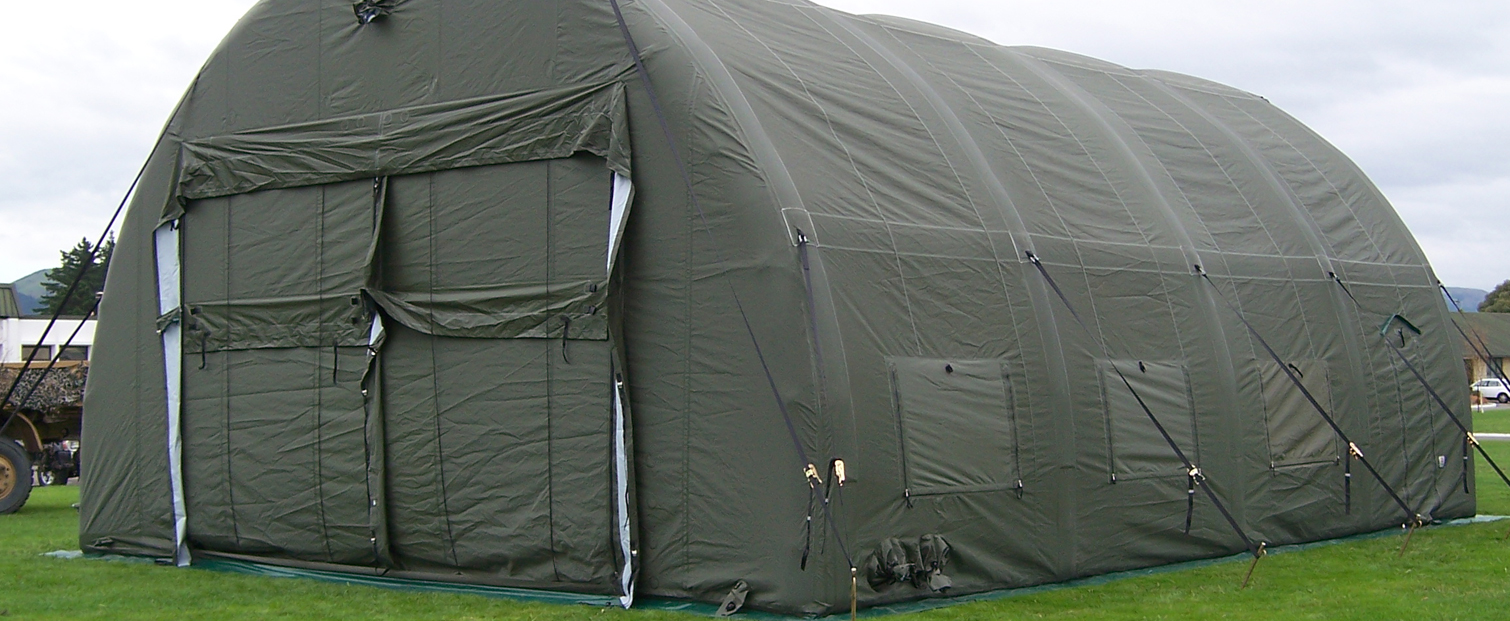

Our award-winning Covertex Custom Large Service Shelters are ideal for mess halls, mass accommodation, vehicle and equipment storage & maintenance or large decontamination areas.
Designed for rapid deployment and constructed for extended use, shelters can be supplied as a single unit or in modular sections, allowing for a flexible configuration.
Compact to store and transport, each shelter is made to order based on the customer’s specified dimensions.
Ideal for:
- Mess halls
- Accommodation
- Storage of vehicles, helicopters and equipment
- Infield maintenance of vehicles, helicopters and equipment
Design features:
Design features: Quick assembly: Simply unroll, secure, and inflate
One-piece structure: Integrated roof, end walls, and floor for simplicity
Optional modular connection system: Any number of sections can be connected end-to-end
Easily transported: Units can be supplied in manageable lengths for easy transport
Connecting chutes: Allow air conditioning for a dust-free, temperature-controlled environment
Easy access: Equipped with large access and smaller personnel doors
Military-spec fabric: Durable and strong, with options such as blackout and infrared (IR)
Easy servicing: Fabrics can be serviced in the field, with inflatable chambers individually removable for repair
Specifications:
STANDARD PORTICO: 3.2M X 3.2M
External Dimension: L 3.2m x W 3.2m x H 2.65m
Internal Floor Area: 9m²
Weight: 85kg
Packaged Dimensions: 1.0m x 0.65m x 0.5m
[Product code:] DASP 3232 S
STANDARD PORTICO WITH SIDE ENTRANCE: 3.2M X 3.2M
External Dimension: L 3.2m x W 3.2m x H 2.65m
Internal Floor Area: 9m²
Weight: 95kg
Packaged Dimensions: 1.0m x 0.7m x 0.5m
[Product code:] DAS 3232 HSE1
LARGE PORTICO: 6M X 6M
External Dimension: L 6.1m x W 6.0m x H 3.05m
Internal Floor Area: 34m²
Weight: 195kg
Packaged Dimensions: 1.6m x 0.95m x 0.6m
[Product code:] DASP 6060 S
LARGE PORTICO WITH SIDE ENTRANCE AND JOINER: 6M X 6M
External Dimension: L 6.0m x W 6.0m x H 3.0m
Internal Floor Area: 34m²
Weight: 205kg
Packaged Dimensions: 1.6m x 0.95m x 0.6m
[Product code:] DASP 6060 SEJ1
LARGE PORTICO WITH TWO SIDE ENTRANCES AND TWO JOINERS: 6M X 6M
External Dimension: L 6.0m x W 6.0m x H 3.0m
Internal Floor Area: 35m²
Weight: 205kg
Packaged Dimensions: 1.6m x 1.05m x 0.6m
[Product code:] DASP 6060 SEJ2
EXTRA LARGE PORTICO: 9M X 6M
External Dimension: L 9.0m x W 6.0m x H 3.0m
Internal Floor Area: 50.5m²
Weight: 240kg
Packaged Dimensions: 1.6m x 1.0m x 0.8m
[Product code:] DAS 9060 S
EXTRA LARGE PORTICO WITH TWO SIDE ENTRANCES AND TWO JOINERS: 9M X 6M
External Dimension: L 9.0m x W 6.0m x H 3.0m
Internal Floor Area: 51.5m²
Weight: 280kg
Packaged Dimensions: 1.6m x 1.2m x 0.8m
[Product code:] DAS 9060 SEJ2
