Our range of advanced decontamination solutions are designed for rapid deployment and ease of use and can be fully operational immediately after inflation. Ranging from single shower cubicles to large-scale decontamination stations, each shelter features a durable, sealed inflatable frame with a roof, end walls, and floor, maximizing safety.
Integrated components, such as spray booms, floor bunding, and partitions, can also be added, making the shelters highly customisable to meet your specific needs.
Ideal for:
- Decontamination of personnel
- Field hospitals
- Command centres
- Humanitarian assistance
- Temporary refugee and evacuee accommodation
- Emergency response teams
Design features:
Design features: Rapid deployment: Fully operational immediately after inflation
Durable structure: Sealed inflatable frame for maximum safety
Customisable: Integrated components like spray booms, floor bunding, and partitions
Strong material: Made from reinforced PVC using high frequency and thermal welding
Easy access: Roll-up zip doorways with viewing windows
Quick setup: Erected by one person in less than five minutes (for smaller units)
Water runoff control: Bunded shower areas for water containment
Comfortable: Skylights and velcro closures enhance the environment
Portable: Inflatable structural arches can be removed for repair or replacement
Expandable: Easily connects to other units for larger setups
Specifications:
Decontamination Shower Cubicle
Our inflatable-frame shower cubicles are constructed from reinforced PVC material using high frequency and thermal welding to create a strong seal. Featuring roll-up zip doorways with viewing windows, a removable roof and floor, and velcro closures, the cubicles can be erected by one person in less than five minutes. Optional shower boom with detachable hand spray available.
Dimensions: 2.0m x 1.6m x 2.3m
Total weight: 34kg
Inflation time: 3 minutes
Mini Decontamination Unit
Our compact, inflatable-frame mini decontamination shower is made with reinforced-PVC and is capable of processing up to 40 people per hour. Featuring two shower corridors, each unit can be made with either overhead or hand spray options – or both – and is designed to contain all water runoff. Internal components can remain attached during storage, assisting quick deployment when needed.
Deployed dimensions: 2.8m x 3.4m x 2.7m
Total weight: 80kg
Inflation time: 3-4 minutes
Civilian Decontamination Unit: Two-Stage
Our Two-Stage Civilian Decontamination Unit features a single inflatable-frame design and is made with durable reinforced PVC. With the capacity to process up to 40 people per hour, it is designed for a two-stage decontamination process with separate areas for entry and disrobe, and showering. The shower is bunded for safety. The unit includes an adjustable two-corridor layout and both overhead shower and hand spray options. Its components can remain connected during storage for rapid deployment.
Deployed dimensions: 4.5m x 3.4m x 2.6m
Total weight: 90kg
Inflation time: 3-4 minutes
Civilian Decontamination Unit: Three-Stage
Our Three-Stage Civilian Decontamination Unit is a single inflatable-frame shelter made from reinforced PVC. Each unit can process up to 40 people per hour. Units are designed for a three-stage decontamination process, with dedicated zones for entry and disrobing; showering; and drying/re-robing. The shower area is bunded for additional safety. The unit includes an adjustable two-corridor layout and offers multiple overhead shower and hand spray options. Internal components can stay connected during storage to facilitate a fast and efficient deployment.
Deployed dimensions: 6.6m x 3.4m x 2.7m
Total weight: 120kg
Inflation time: 4-5 minutes
Major Decontamination Unit
Our Major Decontamination Unit is a large, robust shelter with a single inflatable frame made from durable reinforced PVC. Each unit can process up to 180 people per hour. Units are designed for a three-stage decontamination process with separate zones for entry and disrobe; showering; and drying and re-robing. The shower area is bunded for additional safety. Featuring an adjustable three-corridor layout with multiple overhead shower and hand spray options, units can be expanded to include an admin or triage theatre if required. Internal components can stay connected during storage to facilitate a fast and efficient deployment.
Dimensions: 7.3m x 4.5m x 2.7m
Total weight: 140kg
Inflation time: 5-6 minutes

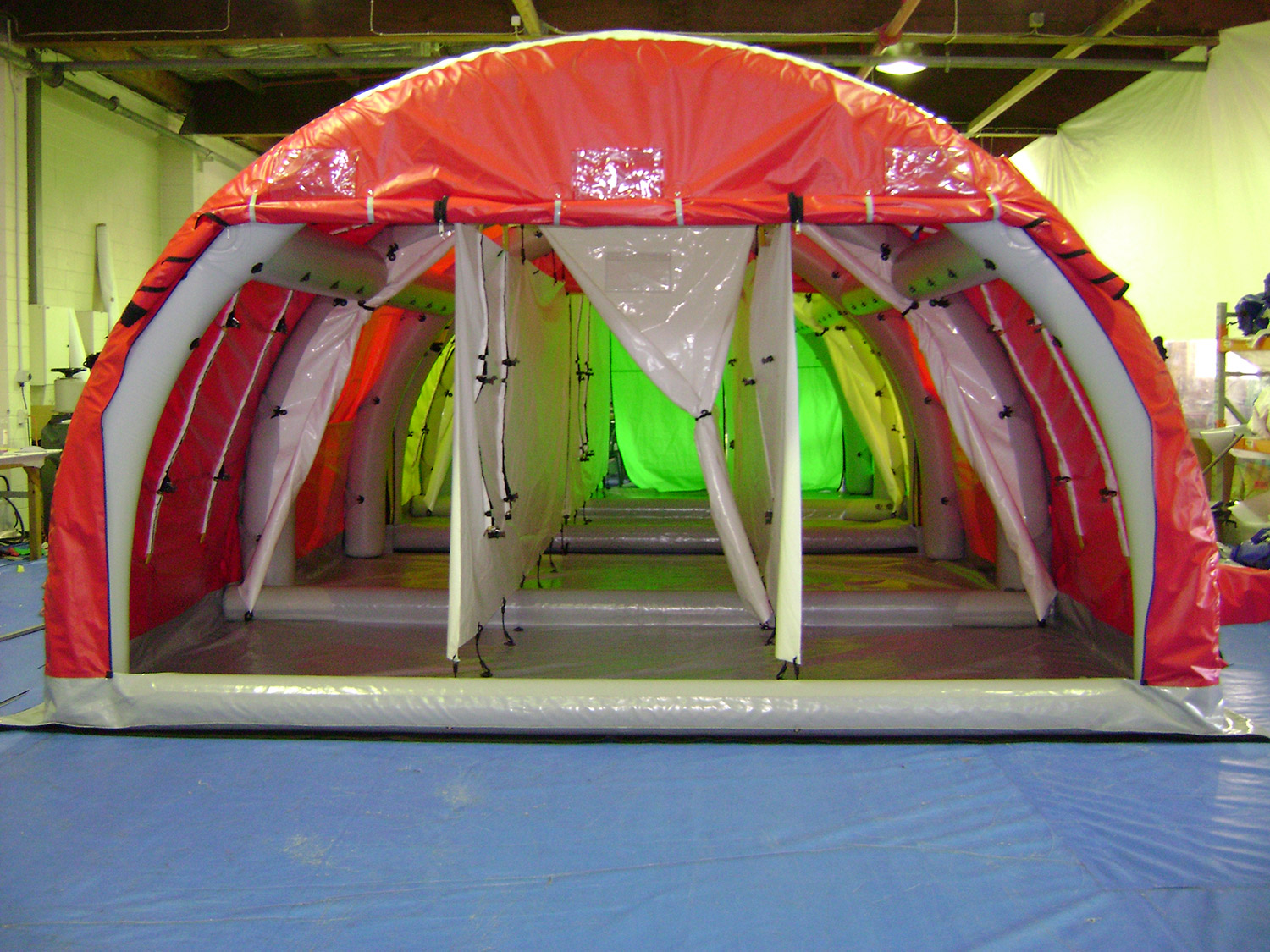

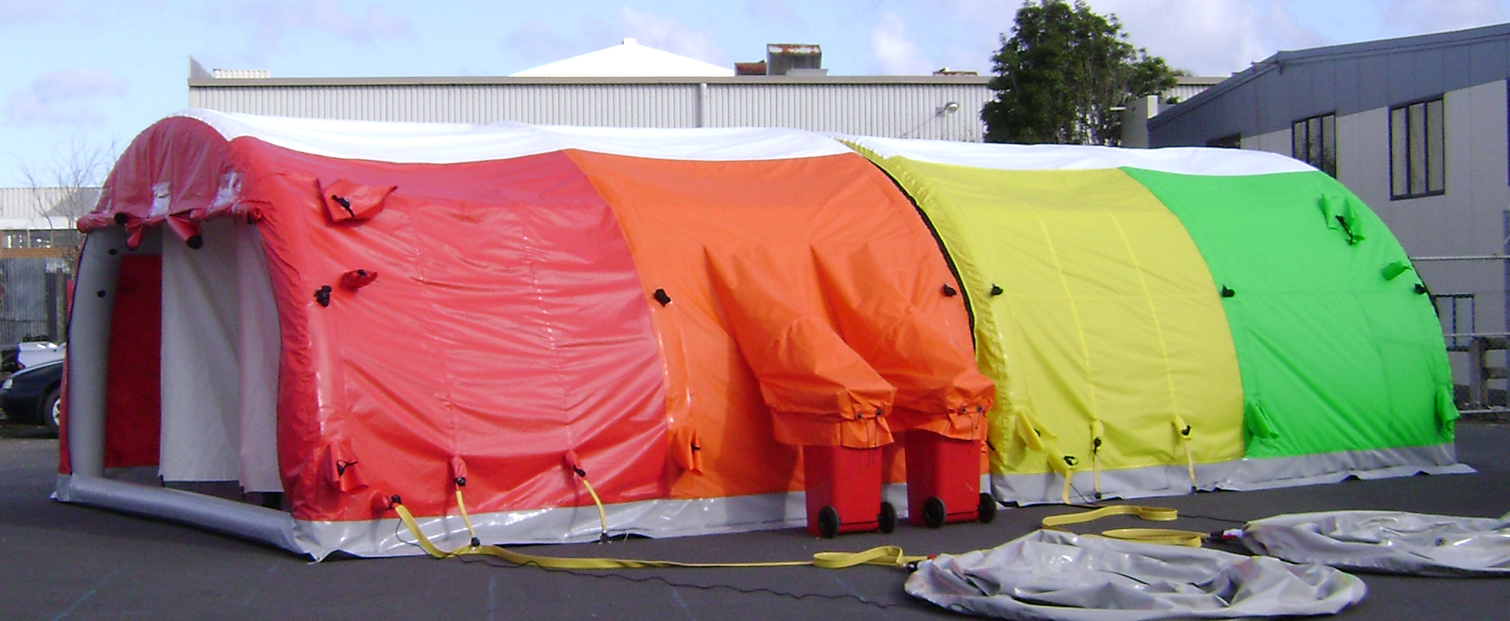

Mass Decontamination Unit
Our Mass Decontamination System is a large two-shelter inflatable-frame design made of durable reinforced PVC. Each unit can process up to 120 people per hour. Units feature four separate zones for decontamination: entry and primary shower; disrobe; secondary shower; and a dry and re-robe zone. All shower areas are bunded for additional safety. An adjustable three-corridor layout and various overhead shower and hand spray options allow for versatile configurations. The system can be expanded to include an admin or triage theatre as needed. Internal components can stay connected during storage to facilitate a fast and efficient deployment.
Deployed dimensions (each unit): 5.0m x 4.5m x 2.7m
Total weight (each unit): 140kg
Inflation time: 5 minutes
